Induction Melting Machine

Home › Products › Induction Melting Machine

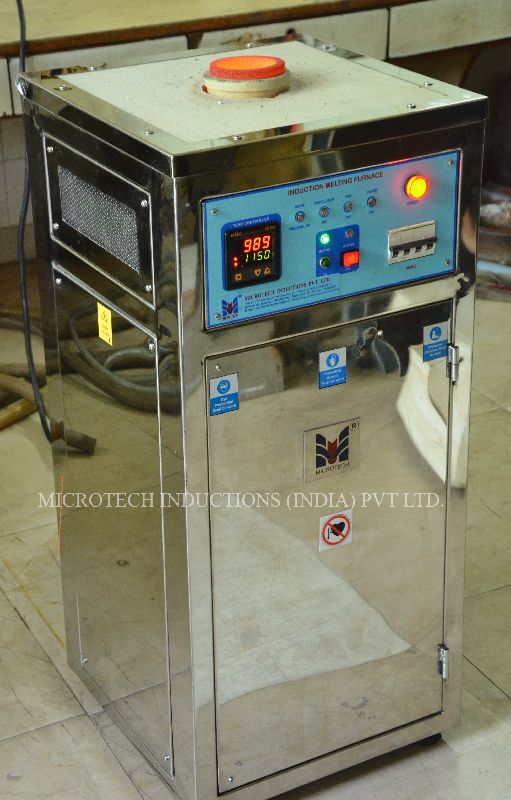

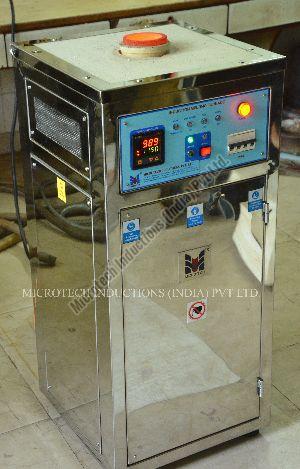

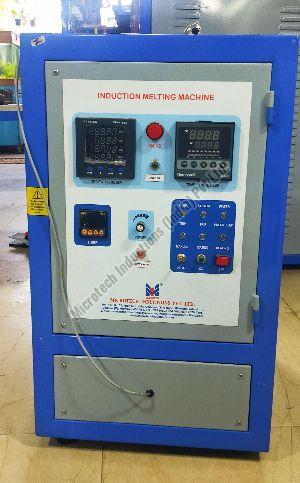

Induction Melting Machine
Induction Melting Machine
Induction Melting Machine

MOQ : 1 Set(s)

Business Type Manufacturer, Exporter, Supplier, Retailer
Type Induction Melting Machine
Certification ISO 9001 : 2015
Condition New
Click to view more

Preferred Buyer From

Location Anywhere in India
Request to Call Send Enquiry

Product Details

Automatic Grade
Automatic, Fully Automatic, Manual, Semi Automatic
Driven Type
Electric, Hydraulic, Pneumatic
Brand Name
MICROTECH
Application
FOR MELTING IRON, GOLD, SILVER, COPPER AND OTHER METALS, ALLOYS, CERAMIC AND BRASS MELTING
Feature
Uniform Metal Melting Due To Induction Churning Less Oxidation Loss Easier Molten Charge Ha
After-Sales Service Provided
WITHIN 24 TO 48 HOURS (EXCEPT REMOTE AREAS)
Name
INDUCTION MELTING MACHINE

We offer precisely engineered Induction Melting Machine that is widely used to melt ferrous and non-ferrous metals for further applications, precious metal melting and various other purposes. We have carved a niche as one of the major Induction Metal Melting Machine Manufacturers and Suppliers based in India. Our Induction Metal Melting Machine is designed to offer efficient melting of metals like gold, silver, steel, alloy and so on. High speed of our Induction Metal Melting Machine saves time as well as energy. Easy to operate, our Induction Melting Machine needs low maintenance cost.


Salient Features

  • Uniform metal melting due to induction churning



  • Less oxidation loss



  • Easier molten charge handling



  • No pre-heating requierd



  • Cost efficient & energy saving



  • Highest system efficiency



  • Highly adaptable for automation



  • Eco-friendly due to noiseless and flameless operation



  • No statutory approvals required



  • Lesser risk involved compared to conventional methods



  • Application Specific



  • Auto or manual mode operation



  • Improved power factor.



  • Tropicalised design



  • Compact size.



Melting Applications

  • Gold melting



  • Silver melting



  • Steel foundry



  • Aluminum foundry



  • Alloy melting



Some of the application relate components.

Read More...

Yes! I am interested


Technical Specifications

Power range 05 - 15 kW. 15 - 30 kW. 30 - 50 kW. 50 - 200 kW.
Frequency range 05 - 200 kHz. 05 - 30 kHz. 05 - 30 kHz. 03 - 30 kHz.
Adaptation to change
load charecteristics		 Yes Yes Yes Yes
Load sensed
self tuning 		Yes Yes Yes Yes
Size W - 620 mm
D - 700 mm
H - 500 mm		 W - 620 mm
D - 700 mm
H - 500 mm		 W - 620 mm
D - 750 mm
H - 1380 mm		 W - 1000 mm
D - 850 mm
H - 1450 mm
Input Power Range Single Phase 230 V / 50 Hz Three Phase 440 V / 50 Hz. Three Phase 440 V / 50 Hz. Three Phase 440 V / 50 Hz.
In our endeavour to make better products, Microtech Induction Pvt. Ltd. reserves the rights to change any specifications at any moment and with prior notice, to the models ( including programming), their accessories and optionals.
