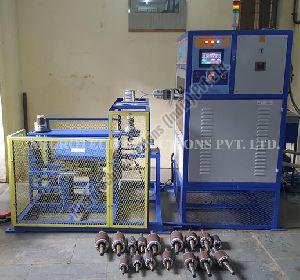

Shrink Fitting Machine

Contact Us

Microtech Inductions Pvt Ltd.

106 & 107, Nitin Industrial Complex, S.P. Marg, Ghartan Pada No. 1, Dahisar (E), Mumbai, Maharashtra - 400068, India

Mobile : +91-9820449453, +91-2228280303, +91-2228280304

Phone : +91-22-28280303

Fax : +91-22-28280305

Call Us : 08042756947




Applications

  • Shrink fitting of gears on shaft.
  • Shrink fitting of sleeves on shaft.
  • Shrink fitting of stator in outer enclosure.
  • Shrink fitting of rotor shaft to rotor.
  • Removal and re-fitting of a gas turbine impeller
  • Assembly of high precision roller bearings
  • Shrink fitting of 2- stroke crank shafts for ship engines.

Specifications

Voltage 220V, 380V
Condition New
Automatic Grade Semi Automatic
Driven Type Electric
Warranty 1year
Durability Long Life


Product Details

POWER RANGE 1-5KW 05-15KW. 15-50KW 50 -200KW
FREQUENCY RANGE 15-400kHz 15-100 kHz 15-30 kHz 15 – 30 kHz
ADAPTATION TO CHANGE LOAD CHARECTERISTICS YES YES YES YES
POWER CONTROL AUTO AUTO AUTO AUTO
LOAD SENSED SELF TUNING  YES YES YES YES
SIZE (mm) W-170
B-495
H-350
W-530
B-640
H-1110
W-620
B-725
H-1370
W-1000
B-1090
H-1675
INPUT POWER RANGE SINGLE PHASE
230V/50Hz.
THREE PHASE
440V/50Hz
THREE PHASE
440V/50Hz
THREE PHASE
440V/50Hz
