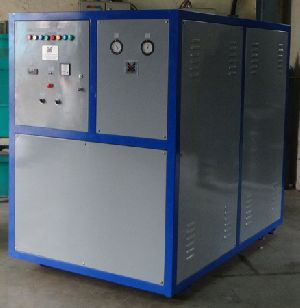

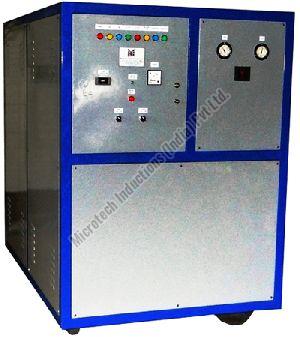

Water Chiller

Contact Us

Microtech Inductions Pvt Ltd.

106 & 107, Nitin Industrial Complex, S.P. Marg, Ghartan Pada No. 1, Dahisar (E), Mumbai, Maharashtra - 400068, India

Mobile : +91-9820449453, +91-2228280303, +91-2228280304

Phone : +91-22-28280303

Fax : +91-22-28280305

Call Us : 08042756947




Applications

  • Large size Chiller & Condenser for any industrial environmental condition.
  • User friendly operations of Electrical as well as Refrigeration.
  • Anti freeze protection.
  • Anti vibrators for Compressors.
  • Tropicalised design.
  • Digital Temperature Controller.
  • With over load Protections for compressor, pump fan etc.

Specifications

Use Heat Removal from One Area & Deposit It Into Ambient Air.
Temperature Range 6 Degree to 25 Degree
Usage Industrial
Capacity 1.5, 2, 3, 5, 7.5 Ton
Refrigerant R-22
Chiller SS


Product Details

MODEL MICSC 1.5T MICSC 2T MICSC 3T MICSC 5T MICSC 7.5T
Temperature 6°C to 18°C 6°C to 18°C 6°C to 18°C 6°C to 18°C 6°C to 18°C
Capacity Kcal+Hr 4537Kcal/Hr 6050Kcal/Hr 9075Kcal/Hr 15125Kcal/Hr 22687 Kcal/Hr
Compressor KW 1.66 2.1 3.32 5.44 6.94
Water Pump H.P 0.5 0.5 1 1 1
Water Connection 1"BSP 1"BSP 1"BSP 1"BSP 11/4"BSP
Con.Load.H.P 2.8 3.3 5.5 8.5 0.5
Tank Cap in Ltr 25 40 50 65 110
Refrigerant R-22 R-22 R-22 R-22 R-22
Chiller SS SS SS SS SS
Condenser Air /Water Cooled Air /Water Cooled Air /Water Cooled Air /Water Cooled Air /Water Cooled
