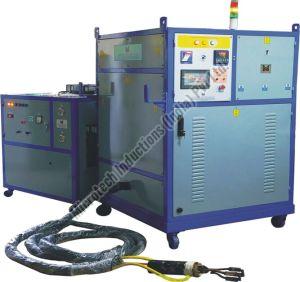

Induction Brazing Machine with HHT

Contact Us

Microtech Inductions Pvt Ltd.

106 & 107, Nitin Industrial Complex, S.P. Marg, Ghartan Pada No. 1, Dahisar (E), Mumbai, Maharashtra - 400068, India

Mobile : +91-9820449453, +91-2228280303, +91-2228280304

Phone : +91-22-28280303

Fax : +91-22-28280305

Call Us : 08042756947




Applications

  • Brazing of generator stator windings.
  • End ring brazing of rotors
  • Copper bus bars brazing  of transformers
  • Copper parts for compressors.
  • Brazing of condenser coil.
  • Submersible pump rotors.
  • Ring cable lugs.
  • Aluminum component joints.
  • Soldering of brass components.
  • Steel components joints.
  • Brazing of storage water heater Elements.
  • Diamond tipped cutting tools.
  • Carbide tipping of cutting tools.
  • Optical Frame Brazing.
  • Fuel pipe Brazing.
  • Vacuum brazing of critical components.
  • Brazing stainless steel orthodontic parts.
  • Brazing of stainless steel to Brass.
  • Rocker Pins.
  • Hydraulic Hose.



Features

  • Flexible set up ensures proper brazing on hydro generator stator like big unit.
  • Quick heating ensures minimum heat conduction to bus bars preventing failure of  insulation.
  • Skid mounted system with chiller ensures maneuverability.
  • Uniform heating at desired area provides even flow of filler metal.
  • PLC based man machine interface for ease of operation.
  • Highest efficiency.
  • Lesser brazing cost comparing to conventional methods
  • Strong and ductile joints
  • Suitable for dissimilar materials
  • Controlled atmosphere brazing is possible
  • Highly adaptable for automation
  • Eco-friendly due to noiseless and flameless operation
  • No statutory approvals required
  • Lesser risk involved compared to conventional methods
  • Application Specific
  • Auto or manual mode operation
  • Improved power factor
  • Tropicalized design
  • Compact size

Specifications

Condition New
Automatic Grade Semi Automatic
Driven Type Electric
Warranty 1year
Type Induction
Durability Long Life


Product Details

POWER RANGE 1-5KW 05-15KW. 15-50KW 50 -200KW
FREQUENCY RANGE 15-400kHz 15-100 kHz 15-30kHz 15 – 30kHz
ADAPTATION TO CHANGE LOAD CHARECTERISTICS YES YES YES YES
POWER CONTROL AUTO AUTO AUTO AUTO
LOAD SENSED SELF TUNING  YES YES YES YES
SIZE (mm) W-170
B-495
H-350
W-530
B-640
H-1110
W-620
B-725
H-1370
W-1000
B-1090
H-1675
INPUT POWER RANGE SINGLE PHASE
230V/50Hz.
THREE PHASE
440V/50Hz
THREE PHASE
440V/50Hz
THREE PHASE
440V/50Hz
